Catalog Number - 49210-10-1M

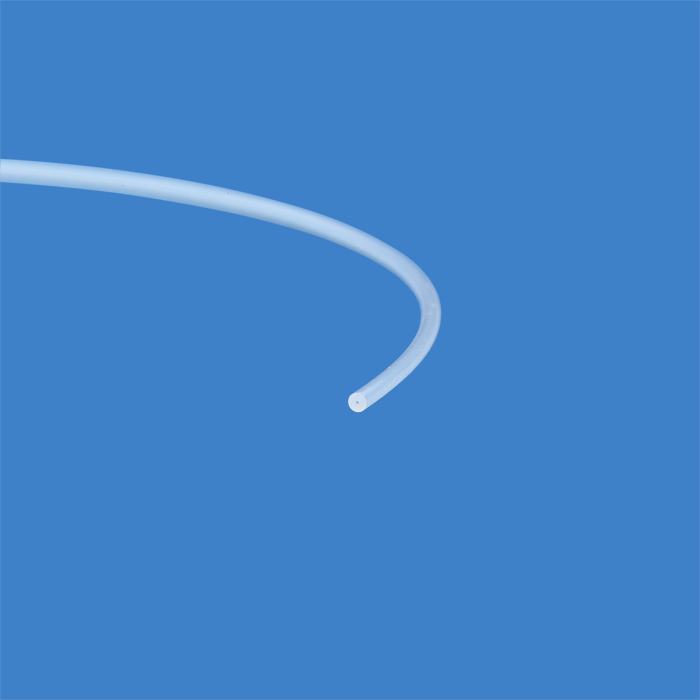

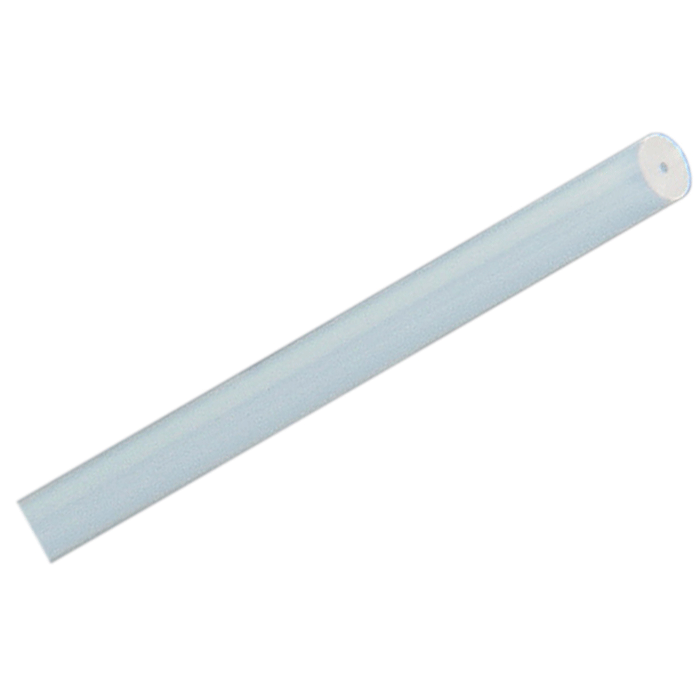

49210-10-1M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering increased internal diameter for improved flow capacity while maintaining chemical inertness and stability.

Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring minimal contamination and compatibility with sensitive analytical methods.

Precision Dimensions – Increased Flow Capacity

• Inner Diameter (ID): 0.010" (0.25 mm)

• Outer Diameter (OD): 1/16" (1.6 mm)

• Wall Thickness: 0.675 mm

• Tolerance (ID & OD): ± 0.10 mm

✅ Larger ID than 0.007" tubing for higher flow rates and reduced backpressure

Low‑Pressure Chromatography Performance

• Designed for low‑pressure fluid paths, including:

  • Pre‑pump mobile phase delivery

  • Post‑detector waste lines

  • General solvent transfer

• Pressure Rating: 800 psi (55.2 bar)

✅ Ideal for applications requiring slightly higher flow without restriction

Virgin PTFE Construction – High Purity & Inertness

• Made from 100% virgin PTFE

• No additives (except minimal color coding particles)

• Chemically inert and non‑reactive

✅ Minimizes contamination in LC‑MS and high‑sensitivity workflows

Broad Chemical & Temperature Resistance

• Resistant to:

  • Organic solvents

  • Acids and bases

  • Aqueous mobile phases

• Maximum Temperature: 260 °C

✅ Suitable for demanding analytical environments

Micro‑Porous Structure – Application Consideration

• PTFE tubing contains micropores allowing slight gas exchange

• Important for:

  • Degassed solvents

  • Oxygen‑sensitive workflows

✅ Consider alternative tubing where gas impermeability is critical

Flexible & Durable Design

• Flexible for easy routing and system setup

• Durable for routine laboratory use

• Natural translucent color allows visual confirmation of flow

✅ Supports efficient installation and maintenance

Regulatory Compliance

• Compliant with:

  • RoHS EU Directive 2011/65/EU

  • Amendment (EU) 2015/863

✅ Meets global safety and environmental standards

Available Length Options

✅ Choose the length that fits your application needs:

• 1 meter (this item)

• 3 meter roll

• 5 meter roll

• 10 meter roll

• 25 meter roll

✅ Custom cut lengths available through Customer Service

Typical Applications

• HPLC mobile phase delivery (pre‑pump)

• Solvent waste systems

• Low‑pressure fluid routing

• Laboratory solvent transfer

• OEM and instrument integration

Important Usage Notes

• Not intended for high‑pressure HPLC pump connections

• Consider permeability when using degassed or oxygen‑sensitive solvents

• Use proper fittings for secure connections
